2024 Open Range Fifth Wheels | NEW 286RLS
2024 Open Range Fifth Wheels
Previous model years are dealer stock only.

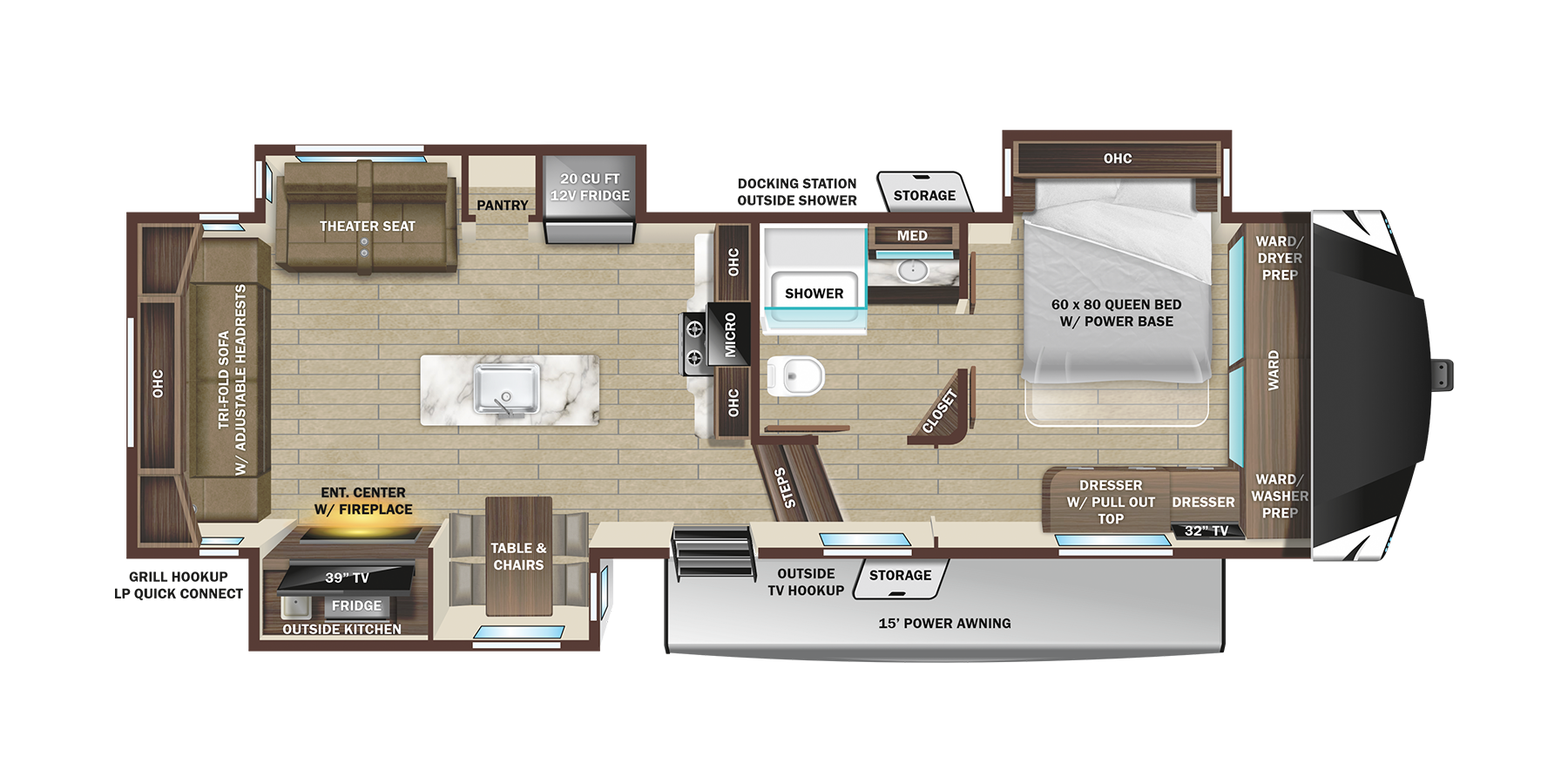

See Floorplan with
an Option Added:
See Floorplan with
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Specifications
Weights
| Dry Hitch Weight (lbs) | 2,160 |
| Unloaded Vehicle Weight (lbs) | 11,100 |
| Cargo Carrying Capacity (lbs) | 2,400 |
| Gross Vehicle Weight Rating (lbs) | 13,500 |
Measurements
| Exterior Length (overall) | 35' 2" |
| Exterior Length (pin to bumper) | 33' 10" |
| Exterior Height | 12' 8" |
| Exterior Height (with A/C) | 13' 4" |
| Exterior Width | 8' 4" |
| Exterior Width (with slides out) | 14' 9" |
| Interior Height (main) | 8' 1" |
| Interior Height (upper deck) | 6' 4" |
| Awning Length | 15' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 75.0 |
| Gray Water Capacity (gals) | 97.0 |
| Black Tank Capacity (gals) | 40.0 |
| Propane Unit (lbs) | 60 |
Miscellaneous
| Sleeps | up to 4 |
| Water Heater | 10 |
| # of outside storage compartments | 2 |
| Furnace BTU | 40000 |
| Tire Size | ST235/80R16'E' |
